Data Transmission Modes

There are several different modes of data transmission, including:

Simplex: In simplex mode, data can only be transmitted in one direction. This means that the transmitter can send data, but the receiver cannot send data back.

Half-duplex: In half-duplex mode, data can be transmitted in both directions, but not at the same time. This means that the transmitter and receiver can both send and receive data, but they have to take turns.

Full-duplex: In full-duplex mode, data can be transmitted in both directions simultaneously. This means that the transmitter and receiver can both send and receive data at the same time.

Multiplexing: Multiplexing is a technique that allows multiple data streams to be transmitted over a single communication channel. There are several different types of multiplexing, including time-division multiplexing (TDM), frequency-division multiplexing (FDM), and wavelength-division multiplexing (WDM).

Asynchronous transmission: In asynchronous transmission, data is transmitted without a clock signal. Instead, the start and stop bits are used to indicate the beginning and end of each character.

Synchronous transmission: In synchronous transmission, data is transmitted using a clock signal to ensure that the transmitter and receiver are in sync. This allows for faster data transfer rates, but requires more complex hardware.

a. Simplex Transmission Mode

Simplex mode is a type of data transmission in which data can only be transmitted in one direction. This means that the transmitter can send data, but the receiver cannot send data back.

Simplex mode is often used in applications where the transmitter and receiver do not need to communicate with each other, or where the transmission of data is only one-way. For example, a television broadcast is transmitted in simplex mode, as the television station does not need to receive any information back from the viewer. Similarly, a smoke detector is a simplex device because it only transmits an alarm signal when it detects smoke, and does not receive any data back.

Simplex mode is generally less efficient than other modes of data transmission, as it does not allow for the exchange of information between the transmitter and receiver. However, it can be useful in certain situations where only one-way communication is needed.

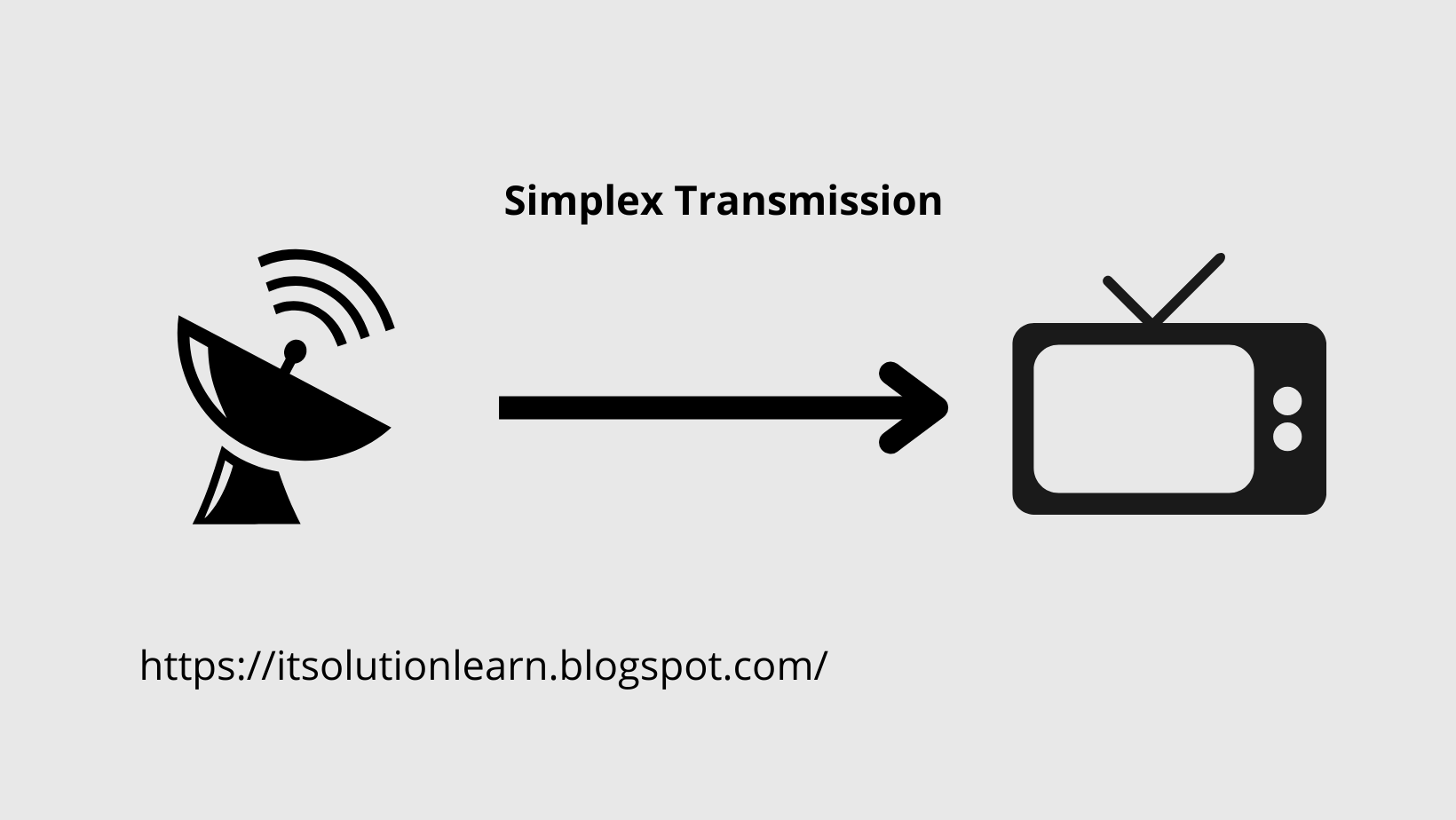

Fig 5.2 Simplex Transmission

b. Half-Duplex Transmission mode

Half-duplex mode is a type of data transmission in which data can be transmitted in both directions, but not at the same time. This means that the transmitter and receiver can both send and receive data, but they have to take turns.

An example of a half-duplex system is a walkie-talkie, in which one person talks while the other listens, and then they switch roles. Another example is a two-way radio, in which the transmitter and receiver can both send and receive data, but only one person can talk at a time.

Half-duplex mode is less efficient than full-duplex mode, as it requires the transmitter and receiver to take turns communicating. However, it can be useful in situations where both parties need to be able to send and receive data, but do not need to do so simultaneously.

 Fig 5.3 shows half-duplex transmission

Fig 5.3 Half-duplex Transmission

c. Full-Duplex Transmission mode

Full-duplex mode is a type of data transmission in which data can be transmitted in both directions simultaneously. This means that the transmitter and receiver can both send and receive data at the same time.

An example of a full-duplex system is a telephone, in which both parties can talk and listen at the same time. Another example is a computer network, in which multiple devices can communicate with each other simultaneously.

Full-duplex mode is more efficient than half-duplex mode, as it allows for the simultaneous transmission and receipt of data. This can significantly improve the speed and efficiency of communication between the transmitter and receiver. However, it requires more complex hardware and may not be suitable for all types of applications.

 Fig 5 .4 show  full-duplex transmission.

Fig 5.4 Full-duplex Transmission
